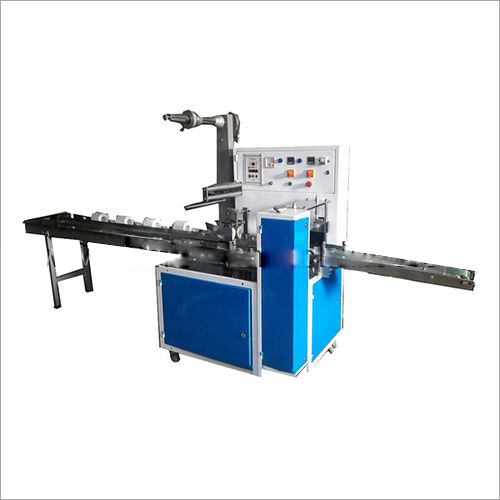

Single Toilet Roll Packing and Sealing Machine
1100000 INR
Product Details:
- Features Automatic roll feeding, Film wrapping, Accurate size sealing, User-friendly controls
- Filling Range Single Toilet Roll
- Application Toilet Roll Packing
- Power Supply Single Phase
- Usage Widely used in paper product packaging industries
- Noise Level 70 dB
- Type Slicing Machines
- Click to view more
X
Single Toilet Roll Packing and Sealing Machine Price And Quantity
- 1100000 INR
- 1 Unit
- 1100000.00 - 1350000.00 INR
Single Toilet Roll Packing and Sealing Machine Product Specifications
- Sealing Machine
- PLC Control Panel
- Single Toilet Roll
- 2600 mm x 950 mm x 1600 mm
- Stailness Steel
- High sealing efficiency, Corrosion-resistant, Low maintenance
- 220 Volt (v)
- Automatic
- 2.5 kW
- 20-60 rolls/min
- Electric
- 70 dB
- Widely used in paper product packaging industries
- Slicing Machines
- Heat Sealing
- Silver & Blue
- Single Phase
- No
- Toilet Roll Packing
- Automatic roll feeding, Film wrapping, Accurate size sealing, User-friendly controls
- Cutter Blades, Heating Elements
- 5C - 40C
- 90-140 mm
- BOPP, CPP, PET
- Touch Screen HMI
- 85% RH
- Heavy-duty frame with anti-vibration mounts
- 0.5-0.8 MPa
- 90-130 mm
- Available upon request
- Automatic roller conveyor
- 0.02 - 0.06 mm
- Overload protection, Emergency stop
- 1 Person per shift
Single Toilet Roll Packing and Sealing Machine Trade Information
- 4 Unit Per Month
- 45 Days
- Australia, North America, Eastern Europe, Western Europe, Middle East, Africa, Central America, South America, Asia
- All India
Product Description
Single Toilet Roll Packing and Sealing Machine offered by us is widely used for the packaging of paper rolls into soft polyethylene packets. It is a high speed machinery which is capable to pack a large number items at a faster rate. The packets are sealed with the help of a heating element to give a completely insulated seal around the open corners. It is available in various technical specifications as per the varied needs of the clients. Single Toilet Roll Packing and Sealing Machine is made up of superior grade components which gives high strength, robust design and long working life.
Efficient and Reliable Toilet Roll Packaging
Our machine delivers rapid and precise packing at 20-60 rolls per minute, thanks to automatic film wrapping and size-accurate heat sealing. The robust structure ensures longevity and smooth operation even in demanding factory environments. Its user-friendly PLC control panel allows for swift adjustments and seamless workflow integration, making it ideal for most paper product manufacturers.
Versatile Film Compatibility and Sizing Options
This equipment is compatible with a range of packaging films including BOPP, CPP, and PET, with thicknesses between 0.02 and 0.06 mm. It efficiently handles rolls from 90-130 mm in diameter and lengths of 90-140 mm, offering flexibility for toilet paper producers targeting different market needs.
Safety and Service Support
With built-in overload protection, emergency stop, and sturdy anti-vibration mounts, the machine ensures operator safety at all times. Installation service is available upon request, and replaceable parts such as cutter blades and heating elements help keep maintenance straightforward and cost-effective.
FAQ's of Single Toilet Roll Packing and Sealing Machine:
Q: How does the Single Toilet Roll Packing and Sealing Machine operate?
A: The machine automates the process of film wrapping, heat sealing, and cutting, featuring an automatic roller conveyor that transports toilet rolls through each stage. Operation is managed via a touch screen HMI and PLC control panel for efficient, one-person use.Q: What types of films and roll sizes can this machine handle?
A: It is compatible with BOPP, CPP, and PET films with thicknesses from 0.02 to 0.06 mm. The packing system accommodates rolls ranging from 90 to 130 mm in diameter and 90 to 140 mm in length, providing flexibility for different product specifications.Q: When should parts be replaced, and which parts are user-replaceable?
A: Routine inspection is advised to maintain performance. Operator-replaceable parts include cutter blades and heating elements, both easily accessible for quick maintenance without specialist tools.Q: Where can the machine be installed, and what are the operating conditions?
A: It is suitable for installation in paper product factories across India and internationally. The ideal operational conditions are a humidity of up to 85% RH and an ambient temperature between 5C and 40C.Q: What is the process for installing the machine, and is assistance available?
A: Upon request, professional installation service is available to ensure proper setup. The process includes machine assembly, calibration, and hands-on operator training by skilled technicians.Q: How does the machine enhance production efficiency and safety?
A: The automatic feeding, accurate size sealing, and robust safety features like overload protection and emergency stop optimize productivity while safeguarding operators. Its low noise output (70 dB) ensures a comfortable working environment.Q: What are the benefits of using this machine for toilet roll packaging?
A: Investing in this machine improves sealing consistency, minimizes manual labor, reduces human error, and ensures hygiene. Its corrosion-resistant design and efficient controls result in lower maintenance costs and reliable long-term operation.Tell us about your requirement
